CATALOG
Steel pipes, fittings, flanges, press fitting systems, pumps and PV brackets.
Concentric reducers for symmetrical pipe transitions and eccentric reducers that keep one side flat - the standard solution at pump suctions, where the flat side avoids gas and liquid pockets. DN15-DN600, Sch 5S-160, ASME B16.9, EN 10253-4 and GB/T 12459. Standard raw material grades ASTM A403 TP304
Equal (straight) tees and four-way crosses to ASME B16.9, EN 10253-4 and GB/T 12459 for 90 degree branching, DN15-DN600, Sch 5S-160. Reducing tees and 45 degree laterals in equal and reducing types are supplied from the same series - full dimension sheets on request. Full dimensional inspection with
The complete direction-change family to ASME B16.9, EN 10253-4, GB/T 12459 and JIS B2313: 90 degree long radius (R=1.5D), 45 degree, 90 degree short radius (R=1.0D) and 180 degree return bends (LR/SR), DN15-DN600, wall schedules Sch 5S-160 matched to your pipe. Supplied pickled and passivated with s

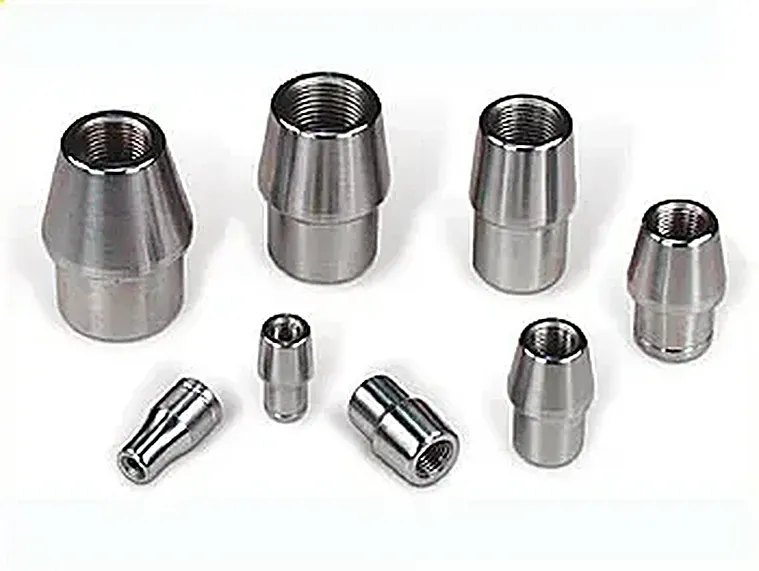

Pair of steel tube adapters (3/4-16 F-R1 thread, 1/2 in OD x .250 wall per title) fitting 1 1/2 in x .156 wall or 1 3/8 in x .095 wall tubes, right and left hand thread.

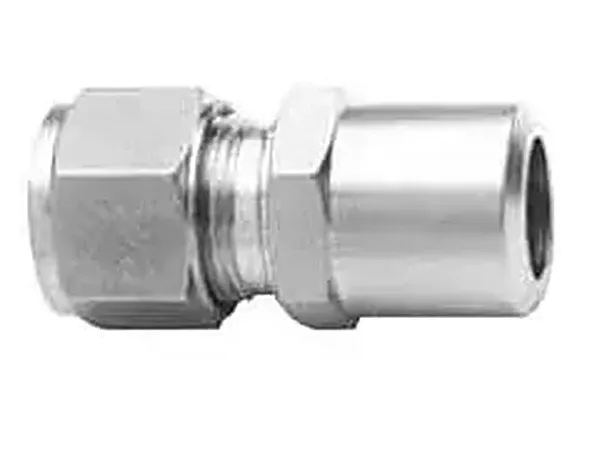

SS304 stainless steel tube-to-butt-weld connector with polished finish, for structure pipe use.
Stainless Steel Pipe Reducer, Size: 3/4 Inch: Size (title/table) 3/4 inch; Material Stainless Steel; Brand Hunan Spai.

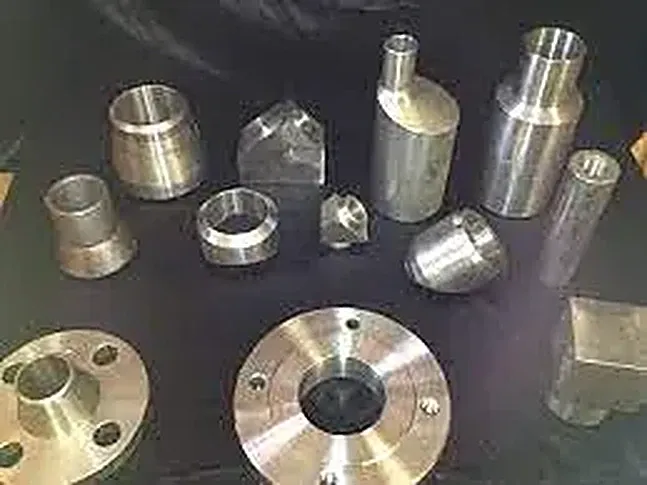

Custom forged fittings made to customer drawings, in carbon, alloy, stainless, duplex, chrome moly and nickel alloy steels; supplied since 2002.
Pack of two 90-degree stainless steel elbows with 1/4" NPT female threads on both ends, rated 150 PSI max working pressure.
2-piece 90 degree stainless steel elbow fitting, 1/4 in. NPT female to 1/4 in. NPT female, max 150 psi, -53 to 121°C.

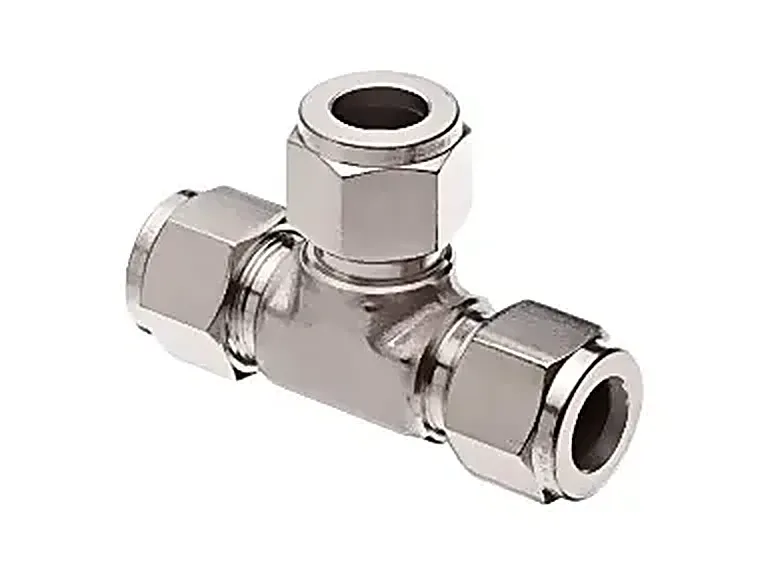

1-1/4 in. Tube O.D. - Union Tee - 316 Stainless Steel Double Ferrule Compression Tube: Tube O.D. 1-1/4 in.; Fitting Type Union Tee, Double Ferrule Compression; Material (title) 316 Stainless
Ductile iron manhole cover for urban road manholes and sewer openings, with enhanced physical properties and anti-theft connection points.
Solar powered street and parking area light: 100 W light output at 10,000 lumens, with a 75 W solar panel and 14.8 V 461.76 Wh battery.
