Pumps & Sewage Lifting

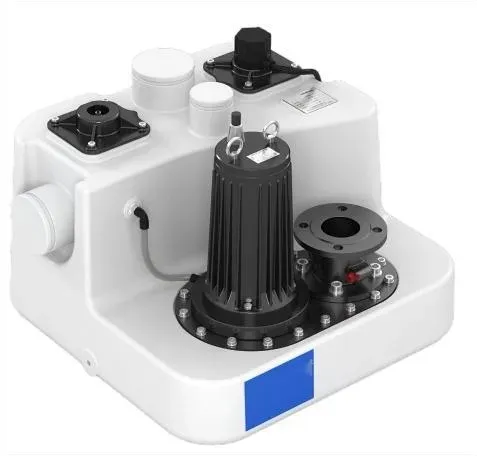

SDPX Sewage Lifting Station
Sewage lifting stations from 25L to 1500L with intelligent controller, dual liquid-level control, IP68 dry motor and optional cutter - to EN 12050-1.
Specifications
- Tank Volume
- 25-1500 L (HDPE)
- Motor Power
- 0.75-15 kW
- Max Flow
- 14-110 m3/h
- Max Head
- 10-45 m
- Inlet
- phi75 / phi110 / phi160
- Control
- Intelligent controller, air-pressure + float dual level, RS485
- Standard
- EN 12050-1
From Basement to Plant Duty
SDPX lifting stations span 25L household units to 1500L plant-class stations - motor power 0.75-15kW, max flow 14-110 m3/h, max head 10-45m - designed to EN 12050-1.
Intelligent Control Standard
Each station includes an intelligent controller with air-pressure and float-ball dual liquid-level control, IP68 dry motor with NSK bearings and double mechanical seal, built-in check valve and optional cutting impeller. RS485 interface supports building automation systems.
Sourced With Your Pipe Package
Drainage projects need pipe, fittings and lifting stations together - consolidate all three in one inspected shipment with matched DN connections.
