LSAW & SSAW Steel Pipe
SAWL PIPE

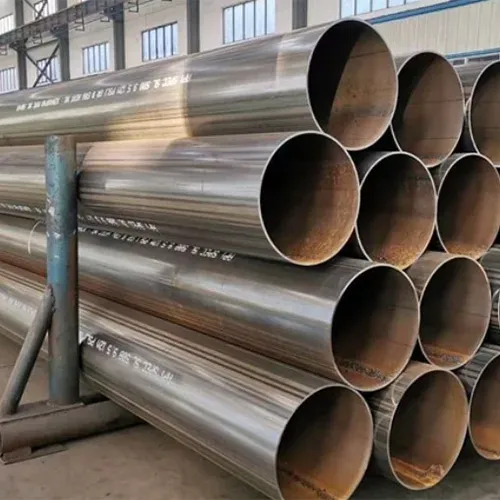

LSAW longitudinal submerged arc welded steel pipe (UOE/RBE/JCOE forming) for oil/gas/low pressure fluid transmission and structural support.
Specifications
- OD
- 219mm-1625mm
- WT
- 6.35 mm - 60 mm
- Length
- 2 m - 18 m
- Heat treatment
- NBK(+N), GBK(+A), BK(+C), BKW(+LC), BKS(+SR)
- OD deviation (tube end)
- ±0.5%D (SY/T5040-2000, SY/T5037-2000); -0.79mm～+2.38mm (SY/T9711.1-1977); ±1.6mm (ASTM A252)
- Standards
- API 5L PSL1/PSL2; ASTM A53; ASTM A572; ASTM A252; AS/NZS 1163; AS/NZS 1074; EN10219-1; EN10217-1; SY/T5040-2000
Product Overview
LSAW longitudinal submerged arc welded steel pipe (UOE/RBE/JCOE forming) for oil/gas/low pressure fluid transmission and structural support. LSAW (Longitudinally Submerged Arc Welding) pipe is subdivided into UOE, RBE, JCOE according to forming method. Features: large diameter, thick walls, high-pressure resistance, low-temperature resistance.
Specifications and Standards
Specification highlights: OD 219mm-1625mm; WT 6.35 mm - 60 mm; Length 2 m - 18 m; Heat treatment NBK(+N), GBK(+A), BK(+C), BKW(+LC), BKS(+SR); OD deviation (tube end) ±0.5%D (SY/T5040-2000, SY/T5037-2000); -0.79mm～+2.38mm (SY/T9711.1-1977); ±1.6mm (ASTM A252). Standards: API 5L PSL1/PSL2; ASTM A53; ASTM A572; ASTM A252; AS/NZS 1163; AS/NZS 1074; EN10219-1; EN10217-1; SY/T5040-2000.
Applications and Ordering
Oil/Gas/Low pressure fluid transmission. Machinery manufacturing. Structural support in industrial construction. Civil construction, petrochemical, light industry. Send your requirement for a quotation.
