Ground Mount PV Bracket

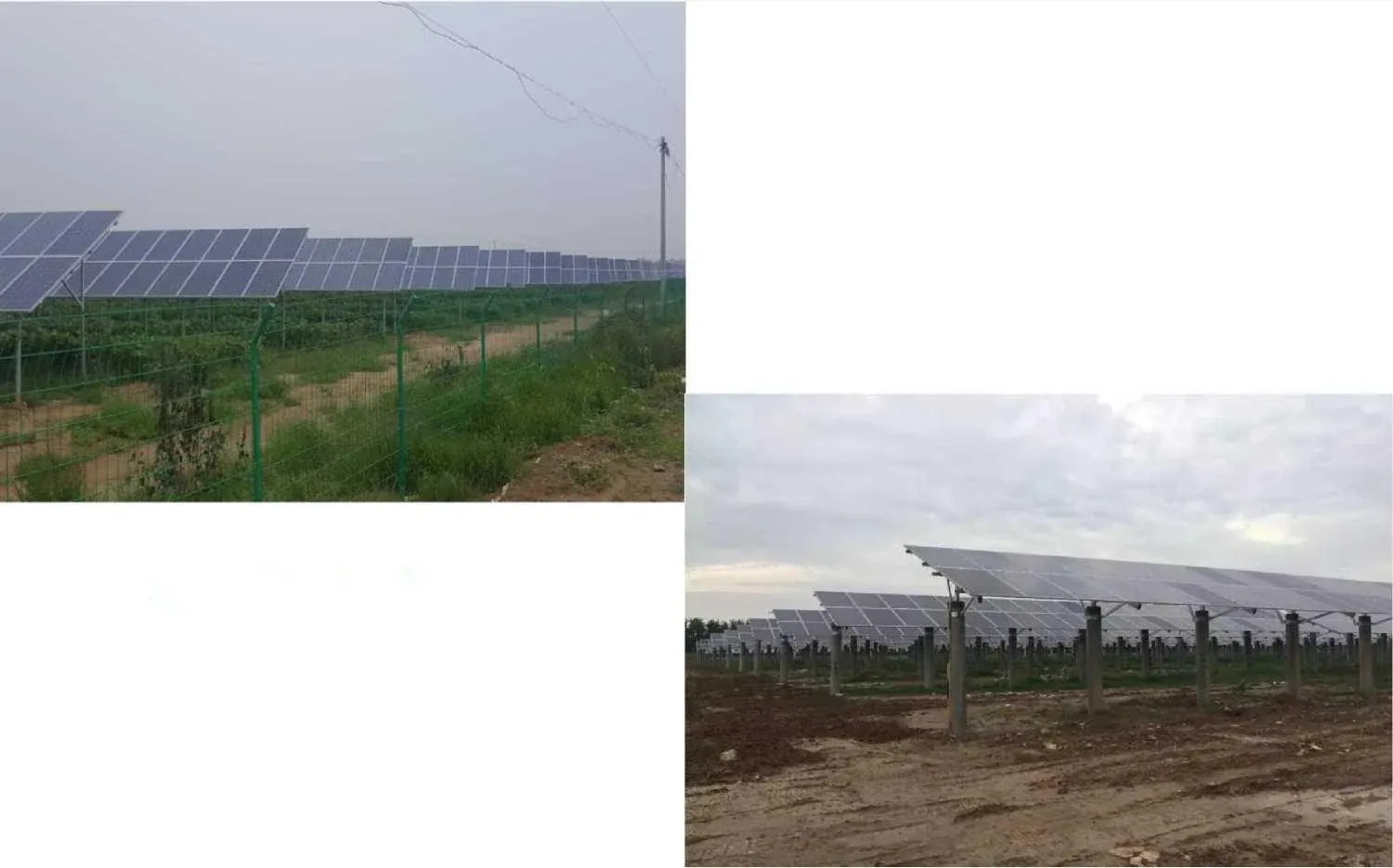

Ground-mounted photovoltaic bracket system in hot-dip galvanized or Zn-Al-Mg steel, supplied from a base producing 450 tonnes per day and more than 3.5 GW per year.
Specifications
- System
- Ground mount for utility and commercial solar farms
- Materials
- Hot-dip galvanized carbon steel, Zn-Al-Mg, aluminium alloy
- Zinc Coating
- Hot-dip galvanized 40-85 um
- Sections
- C-steel 41x21 to 41x72, wall 1.4-2.5 mm
- Capacity
- 450 t/day, 3.5 GW/year
- Certification
- ISO 9001, ISO 14001, PCCC
Engineered Ground Mount Systems
Ground-mounted arrays carry the full wind and snow load of the site, so the bracket is a structural product rather than a piece of hardware. We supply the pile, post, purlin and rail set in hot-dip galvanized carbon steel, zinc-aluminium-magnesium coated steel or aluminium alloy, selected against the site conditions.
Sections run from C-steel 41x21 up to 41x72 with wall thickness of 1.4-2.5 mm, and hot-dip galvanizing gives a 40-85 um coating. The production base at Daqiuzhuang runs more than 20 automated steel lines and over 60 CNC lines, with more than 30 technology patents.
Materials Compared
Hot-dip galvanized carbon steel is the economical default for most ground mounts. Zinc-aluminium-magnesium coating is preferred in coastal and high-corrosion environments where a longer service life is required. Aluminium alloy is chosen where weight matters. The choice is normally driven by the site's corrosivity, the design life and the budget.
Capacity and Certification
The base produces 450 tonnes per day and more than 3.5 GW per year, and holds ISO 9001 and ISO 14001 management certification together with PCCC product certification. Products are tested by national authoritative departments before release.
Selection Notes
Send the site location, array layout, expected wind and snow loads, and the required design life. Those inputs decide the section, the coating and the foundation type, and they are what our engineering team needs to confirm a bracket package.
Send your site conditions, array layout and destination port to our engineering team for a confirmed bracket package.
