Pipe Fittings & Flanges

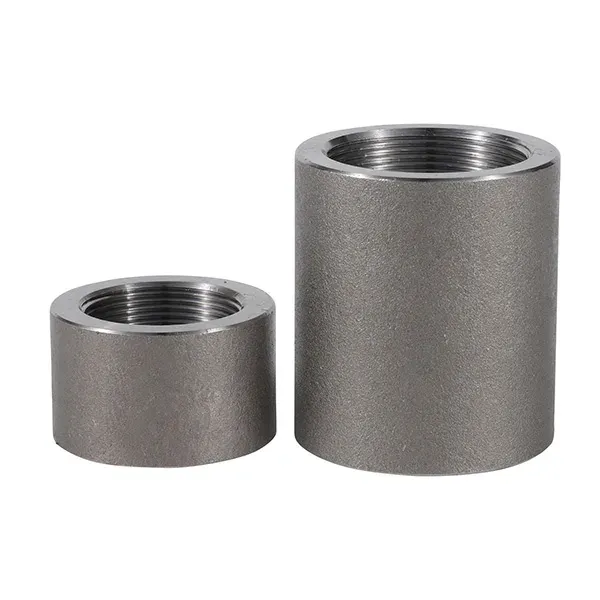

Half coupling
Class 3000 forged 304 stainless steel half coupling with 1/2" NPT female threads both sides, for pipe schedule 160, max steam pressure 1965 psi @ 350°F.
Specifications
- Fitting shape
- Half Coupling
- Material
- Stainless Steel, 304 Stainless Steel; Grade 304
- Class
- Class 3000
- For Pipe Schedule
- 160
- Side A
- 1/2 in NPT female, OD 1 1/8 in
- Side B
- 1/2 in NPT female
- Max operating pressure
- Refer to Specification
- Standards
- ANSI B1.20.1; ASME A182; ASME B16.11
Product Overview
Class 3000 forged 304 stainless steel half coupling with 1/2" NPT female threads both sides, for pipe schedule 160, max steam pressure 1965 psi @ 350°F. Manufactured from forged plate. Dimensions conform to ASME B16.11 Class 3000.
Specifications and Standards
Specification highlights: Fitting shape Half Coupling; Material Stainless Steel, 304 Stainless Steel; Grade 304; Class Class 3000; For Pipe Schedule 160; Side A 1/2 in NPT female, OD 1 1/8 in. Standards: ANSI B1.20.1; ASME A182; ASME B16.11.
Applications and Ordering
NPT threading follows ASME B1.20.1. Send your requirement for a quotation.
