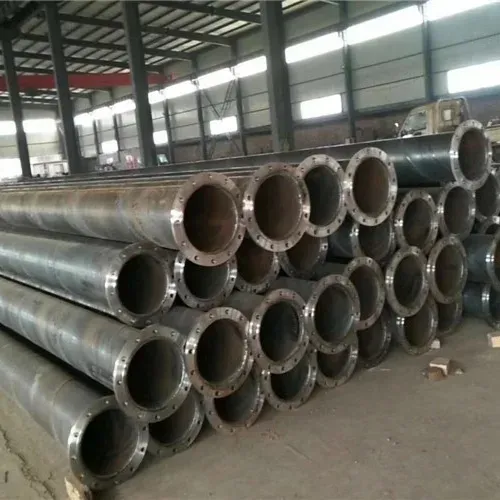

Flanged Connection SSAW Pipe
Spiral submerged arc welded (SSAW) pipe supplied with flanged connection for oil, gas and water transmission.
Specifications
- OD
- 219mm-4064mm
- WT
- 3.2-40mm
- Length
- 3-39m
- Standards
- API 5L PSL1/PSL2; ASTM A53; ASTM A252; ASTM A500; EN10219; EN10208; EN10297; JIS G3457
Product Overview
Spiral submerged arc welded (SSAW) pipe supplied with flanged connection for oil, gas and water transmission. Flat welding: only outer layer welded; for medium and low pressure pipelines with nominal pressure lower than 0.25MPa; three sealing face types (smooth, concave-convex, tenon groove), smooth type most widely used. Butt welding: inner and outer layers welded; for medium-high pressure, nominal pressure between 0.25 ~ 2.5MPa; concave-convex sealing face, complex installation with higher labor and material cost.
Specifications and Standards
Specification highlights: OD 219mm-4064mm; WT 3.2-40mm; Length 3-39m; Standards API 5L PSL1/PSL2; ASTM A53; ASTM A252; ASTM A500; EN10219; EN10208; EN10297; JIS G3457. Standards: API 5L PSL1/PSL2; ASTM A53; ASTM A252; ASTM A500; EN10219; EN10208; EN10297; JIS G3457.
Applications and Ordering
Oil, gas and water transportation. Send your requirement for a quotation.
